48-Inch Raw Water Main Relocation US421

Contact

$1,542,000

Contract Value

635

LF of 48-inch Restrained Ductile Iron Pipe Installed

Scope

The 48″ Raw Water Main project consisted of installing approximately 635 LF of buried 48-inch Restrained Ductile Iron Pipe, along with two 42-inch wet tap connections to an existing 48-inch Prestressed Concrete Cylinder Pipe (PCCP). The scope also included two 48-inch line stops on the existing PCCP, as well as the abandonment and grout filling of the existing pipeline.

Unique Challenges

This project required connecting to the existing PCCP water main at two locations while keeping the main in service. This was accomplished with flow through line stops.

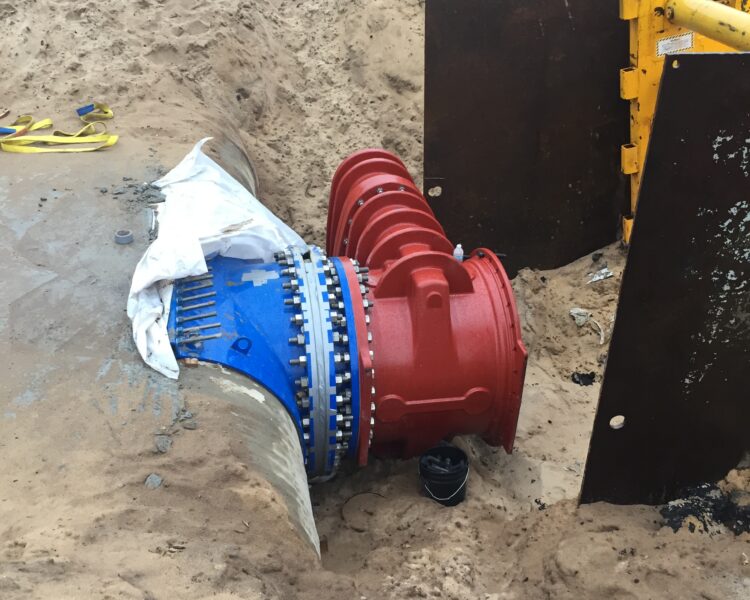

Red and blue pipe in sand at construction site.

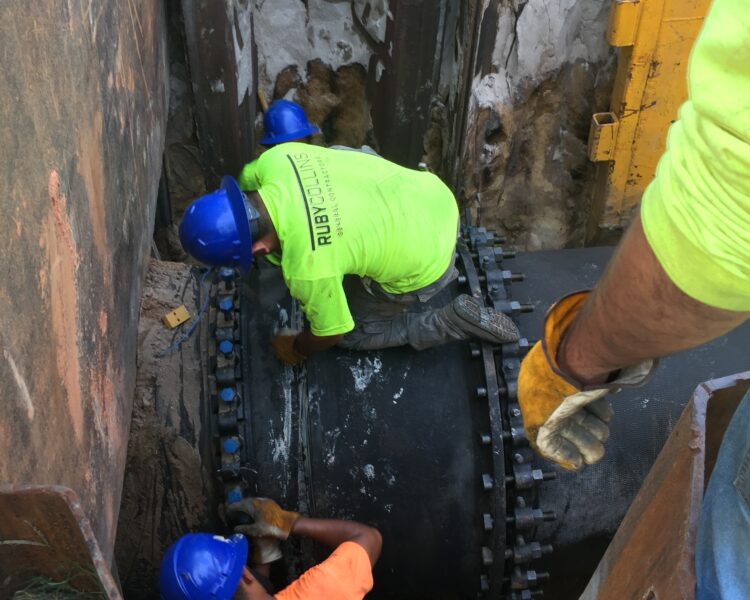

Workers in safety gear install a pipe in a narrow trench.

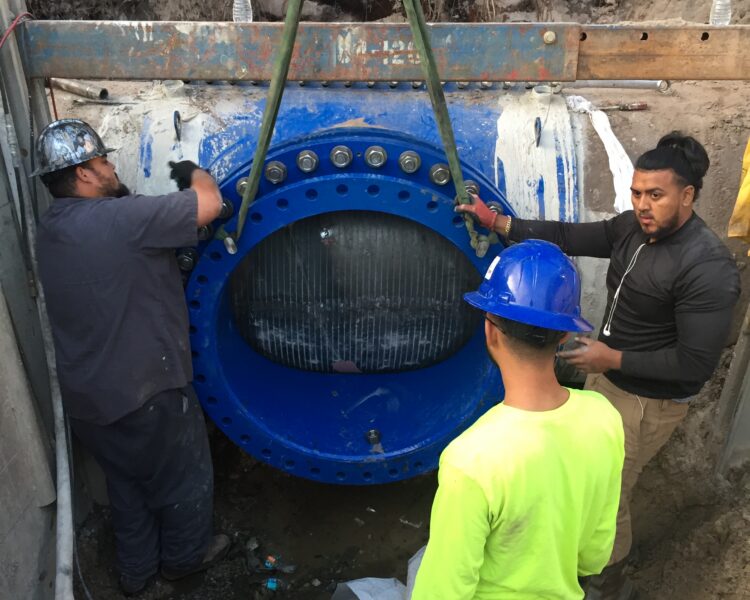

Three workers use a crane to install a large blue pipe.

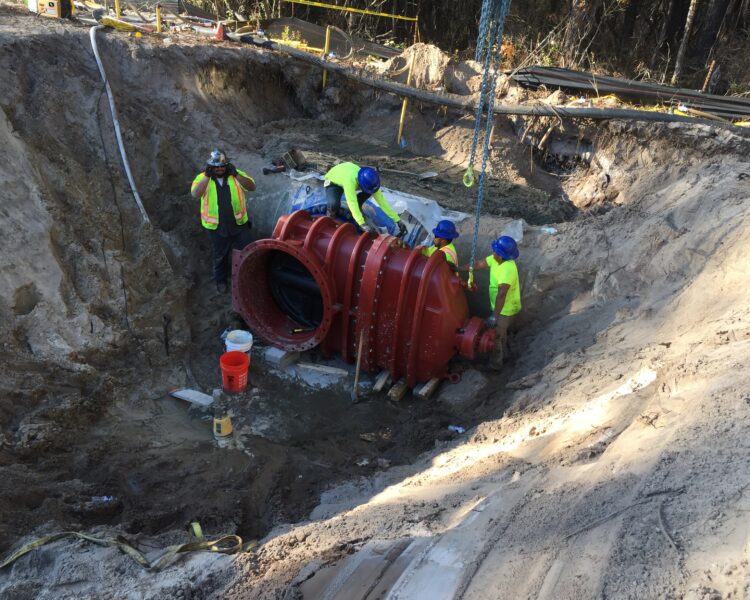

Four workers install a large red pipe in a deep excavation.

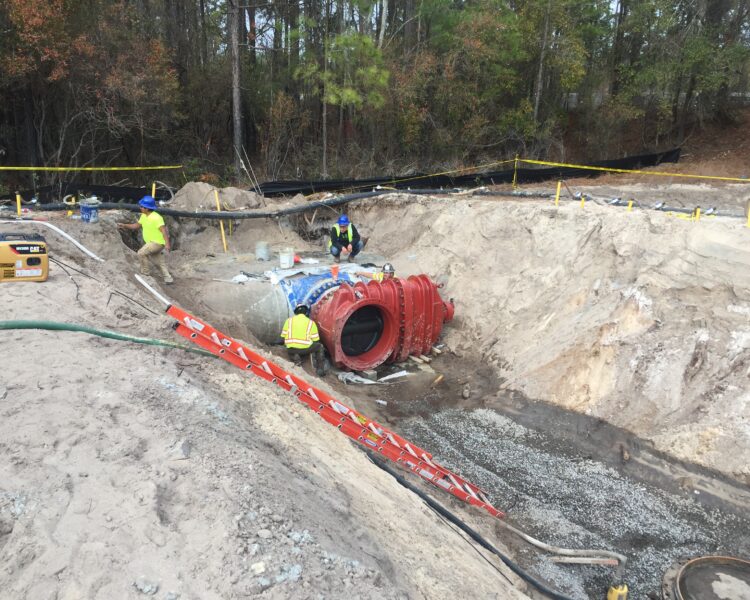

Workers install red and blue pipeline in trench, trees nearby.

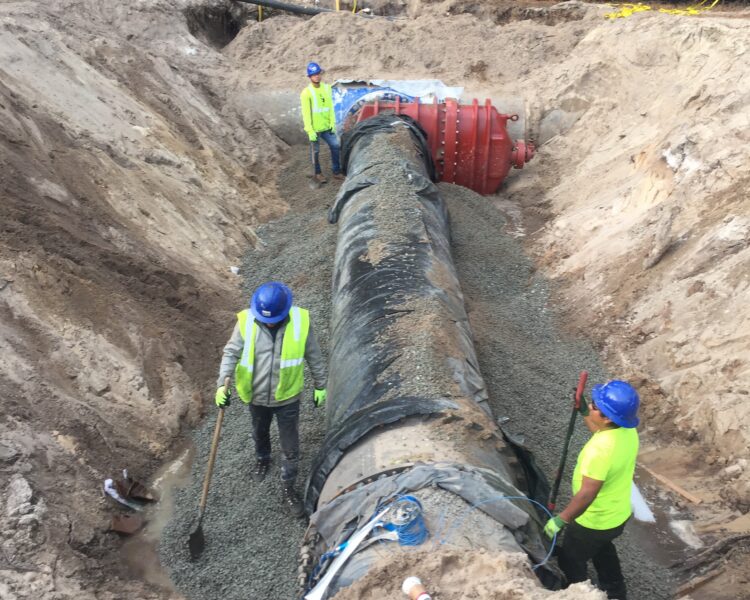

Construction workers install a large pipe in a dirt trench.

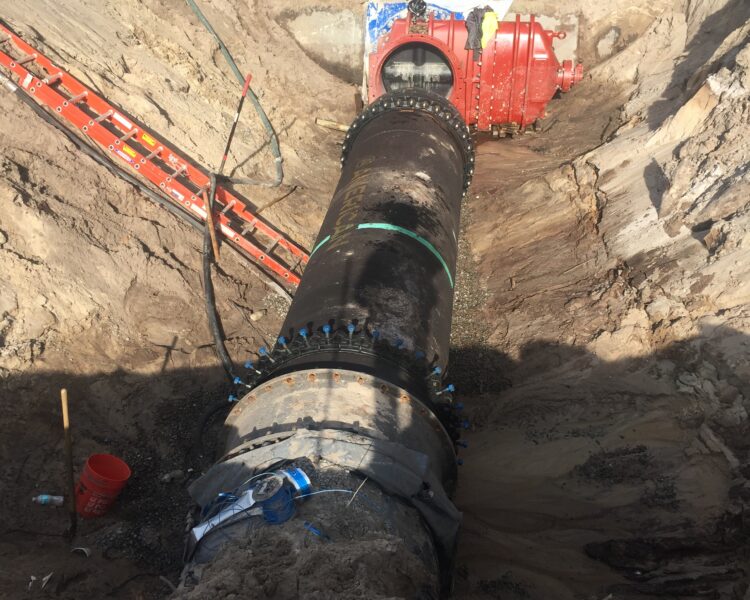

Underground pipe and red valve exposed amid dirt and equipment.
